Description

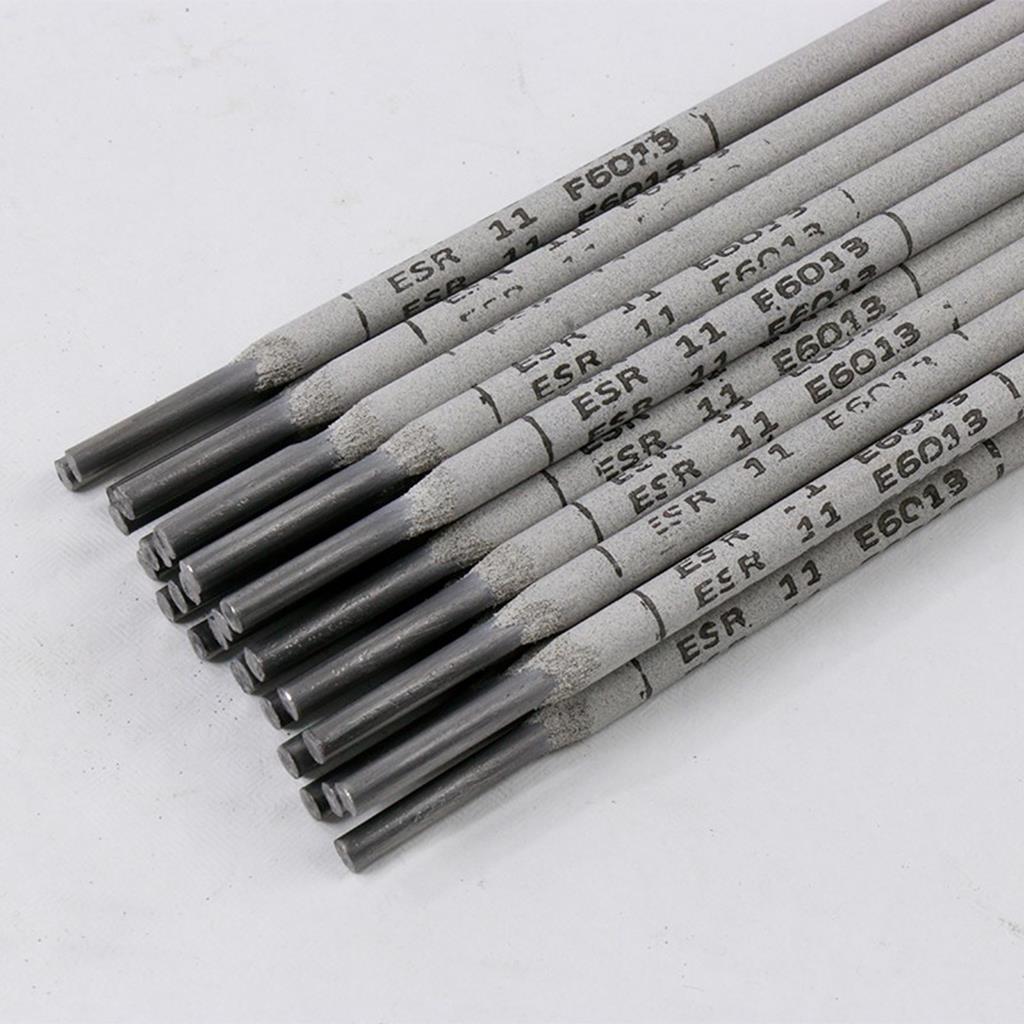

Magmaweld ESR 11 E6013 General Purpose Mild Steel Welding Electrodes are premium, rutile-coated rods engineered for effortless all-position welding. They deliver an incredibly smooth arc, exceptional gap-bridging, and self-releasing slag for professional-grade finishes with minimal cleanup.
Key Features & Benefits
- All-Position Welding: Highly versatile and easy to operate in all positions, including vertically-down.
- Superior Arc Control: Features effortless arc striking and re-striking, making it the perfect choice for tack-welding.
- Clean Finishes: Produces smooth, slightly concave welds that blend seamlessly into the base metal without undercutting.
- Easy Cleanup: Designed with a self-releasing slag property to save you time after welding.
- Universal Compatibility: Runs smoothly and equally well on both AC and DC+ current types.
Ideal Applications
- Thin Metal Work: Specifically optimized for sheet metals thinner than 5 mm.
- Surface Versatility: Performs exceptionally well on galvanized sheets, tubes, primer-painted steel, and slightly rusty metals.
- Heavy Fabrication: Widely used in the production of tanks, boilers, and general tube installations.
Technical Specifications
- Electrode Size: 4.0 mm diameter x 350 mm length
- Pack Weight: 2.5 kg
- Material Type: Mild steel
- Yield Strength: 480 N/mm²
- Tensile Strength: 560 N/mm²
- Elongation (A5): 26%
- Charpy V-Notch Impact Value:> 55J at 0°C
- Chemical Composition: C ≤ 0.10%, Mn ≤ 0.45%, Si ≤ 0.70%
Industry Standards & Certifications
- Classifications: AWS/ASME SFA 5.1 E6013, EN ISO 2560-A E 38 0 RC 11, TS EN ISO 2560-A E 38 0 RC 11
- Approvals: BV, DB, CE, TSE, TÜV
