Description

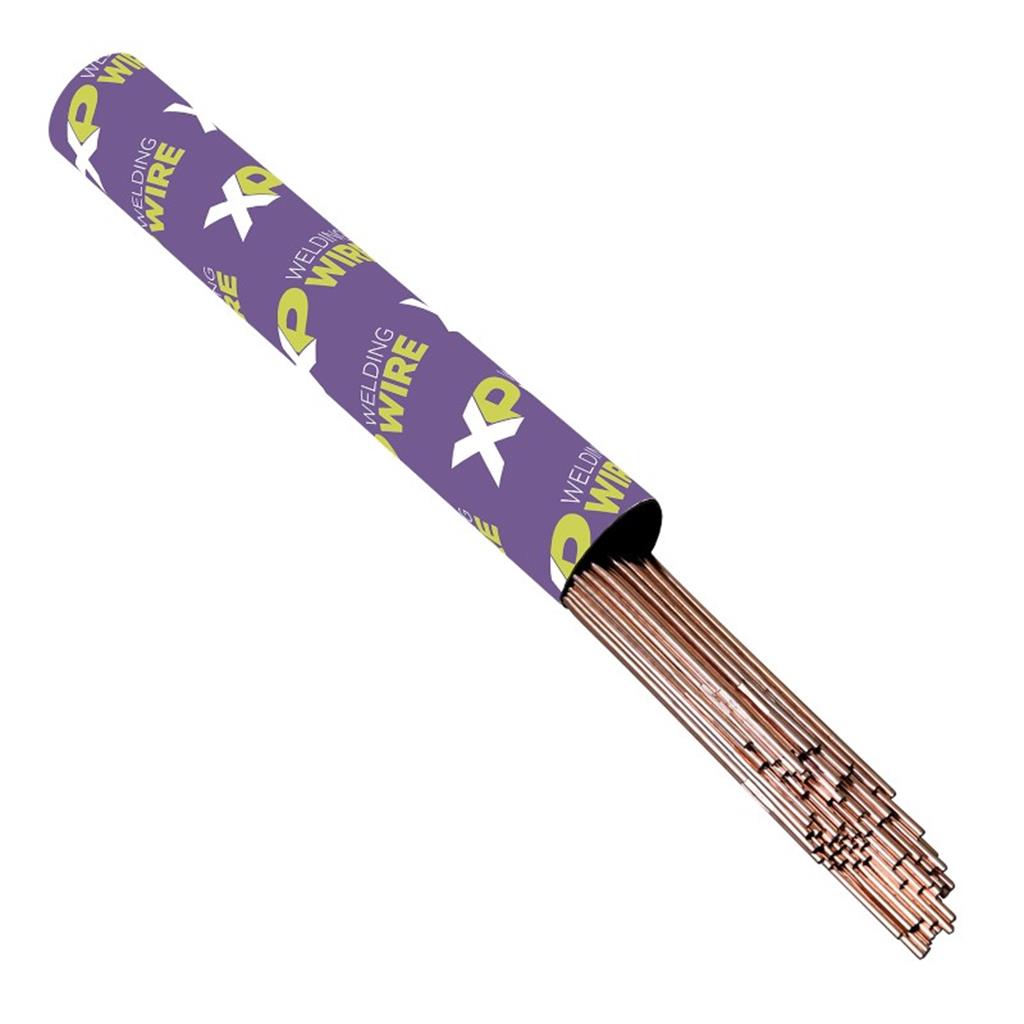

The Parweld XP10330 is a premium-grade, 1.6mm ER70S-6 (A18) mild steel TIG filler wire engineered for precision welding of mild and low-alloy steels requiring a minimum 420 MPa yield strength. Formulated with a double-deoxidised composition and high silicon content, this filler wire promotes exceptional weld pool fluidity. This results in an ultra-smooth bead profile while drastically reducing the need for post-weld grinding and cleanup.
Key Features
- High-Fluidity Weld Pool: Engineered with a controlled silicon level that increases puddle fluidity, enabling superior wetting action and ensuring cleaner tie-ins with minimal spatter.
- Double-Deoxidised Formula: Infused with vital deoxidisers to counteract surface impurities, rust, or mill scale on the base metal, keeping porosity at a minimum.
- Exceptional Low-Temperature Toughness: Delivers highly reliable impact values and sound mechanical properties in subfreezing conditions down to -40°C.
- Industrial Grade Precision: Packaged in a robust, protective 5kg tube ensuring the 1000mm straight rods remain clean, straight, and unexposed to workshop debris.
Technical Specifications
- Part Number: XP10330
- Wire Classification: AWS A5.18 ER70S-6, EN ISO 636-A W 46 4 W3Si1
- Material Type: Double-Deoxidised Mild Steel (A18)
- Rod Diameter: 1.6mm
- Rod Length: 1000mm
- Pack Weight: 5kg
- Welding Current Type: DC- (Direct Current Straight Polarity)
- Shielding Gas Requirement: 100% Pure Argon
- Core Application: Optimised for root and final capping passes on carbon steel pipework, pressure vessels, structural steel fabrications, and general automotive manufacturing.
