XTM211Di

Parweld XTM211DI AC/DC 4in1 Multi-process Inverter

Call for Price

Clear
SKU: N/A Categories: MIG Machines, MMA Machines, Multi-process, TIG Machines Tags: AC/DC, MIG Inverter, MMA Inverter, Multi-process, Parweld, TIG Inverter, Welding Machine Brand: Parweld
  • Description
  • Additional Information

Description

The XTM 211Di MIG Inverter has 4 different processes available to the user making it ideal for the welding of Steels, Stainless Steels and Aluminium using the MIG, AC TIG, DC TIG or MMA processes. The machine uses auto polarity switching so there is no need to change the work lead connections on the front of the machine. Instant swapping between the MIG and TIG processes with one touch of the torch trigger makes it well suited to pipe applications or multi process workshops. The multi-language digital user interface rapidly gets you to the correct machine setting with minimal process knowledge, on site or in the workshop.

Key Features Include:

  • Easy to follow Digital Interface
  • Large high quality colour screen with multi-language function.
  • Adjust machine parameters from the MIG torch handle
  • View and adjust machine parameters from the MIG torch handle that is equipped with OLED Digital Display
  • HF Start TIG
  • Instant swapping between MIG and TIG process with one touch of the torch trigger
  • Rapid synergic setup for MIG, TIG & MMA Welding
  • MIG Weld, down to 0.9mm thick material
  • Memory function for all processes to save and recall welding programs
  • Pulse TIG function for superior arc control
  • Supplied with MMA lead set, input cable and 2 gas hoses
  • 15Kg (300mm) Spool Size
  • Welding Capacity (230V input)

Additional Information

Weight 27.8 kg
Dimensions 615 × 275 × 495 mm
Phase

Single Phase

Machine Style

Compact, Portable

Machine Type

Inverter

Maximum Current

140A DC, 200A DC

Duty Cycle

200A @ 25% Duty Cycle

Input Voltage

110V 1P, 230V 1P, Dual Voltage, Smart Switching

Voltage

110-200V (MMA), 140-200V (MIG), 140-200V (TIG)

Feed Box

2 Roll Drive

Input Current (Eff)

MIG – 21.4A @ 110V / 15A @ 230V, TIG – 20.5 @110V / 11.3A @ 230V, MMA – 20.6 @110V / 15.4A @ 230V

Output

DC

Wire Size

0.6-1.0mm

Spool Size

200mm (5kg), 300mm (15kg)

Minimum Fuse Rating

16A, 32A

KVA

7.8

Generator Size (Requires AVC)

10 KVA

Enclosure Protection

IP23S

Cooling

Air, Fan, Forced

Comes With

3m Earth Cable, 3m Input Cable, CKE MMA Lead, Digital User Interface, Downloadable Mobile Application Option for Remote Mobile/Tablet Device Operation, Gas Hose, Multi-Language Functions

Special Features

Digital User Interface, Pulse TIG function for superior arc control, Smart Switching Dual Voltage, Synergic Control, Synergic Welding Rapid Set Up

Warranty

5 Year Warranty

Conforms To

IP23S, ISO/IEC 60974-1, ISO/IEC 60974-6 & RoHS compliant

Related products

  • Parweld Flip-Up PAPR Complete System

    Parweld XR943A PAPR Air Respiratory System Kit Complete with Flip-Up Mask

    Call for Price
    Read more Show Details
  • Parweld XTM201I Single Phase MIG Inverter

    Call for Price
    Read more

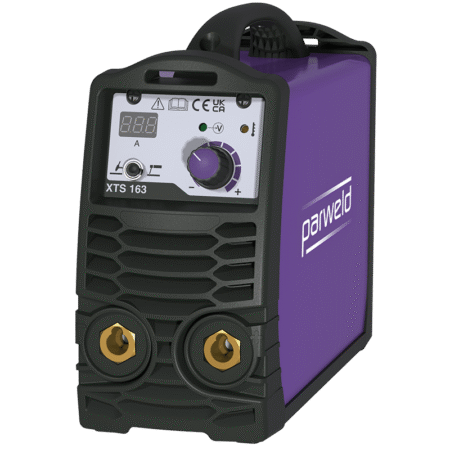

  • Parweld XTS162 MMA Inverter
